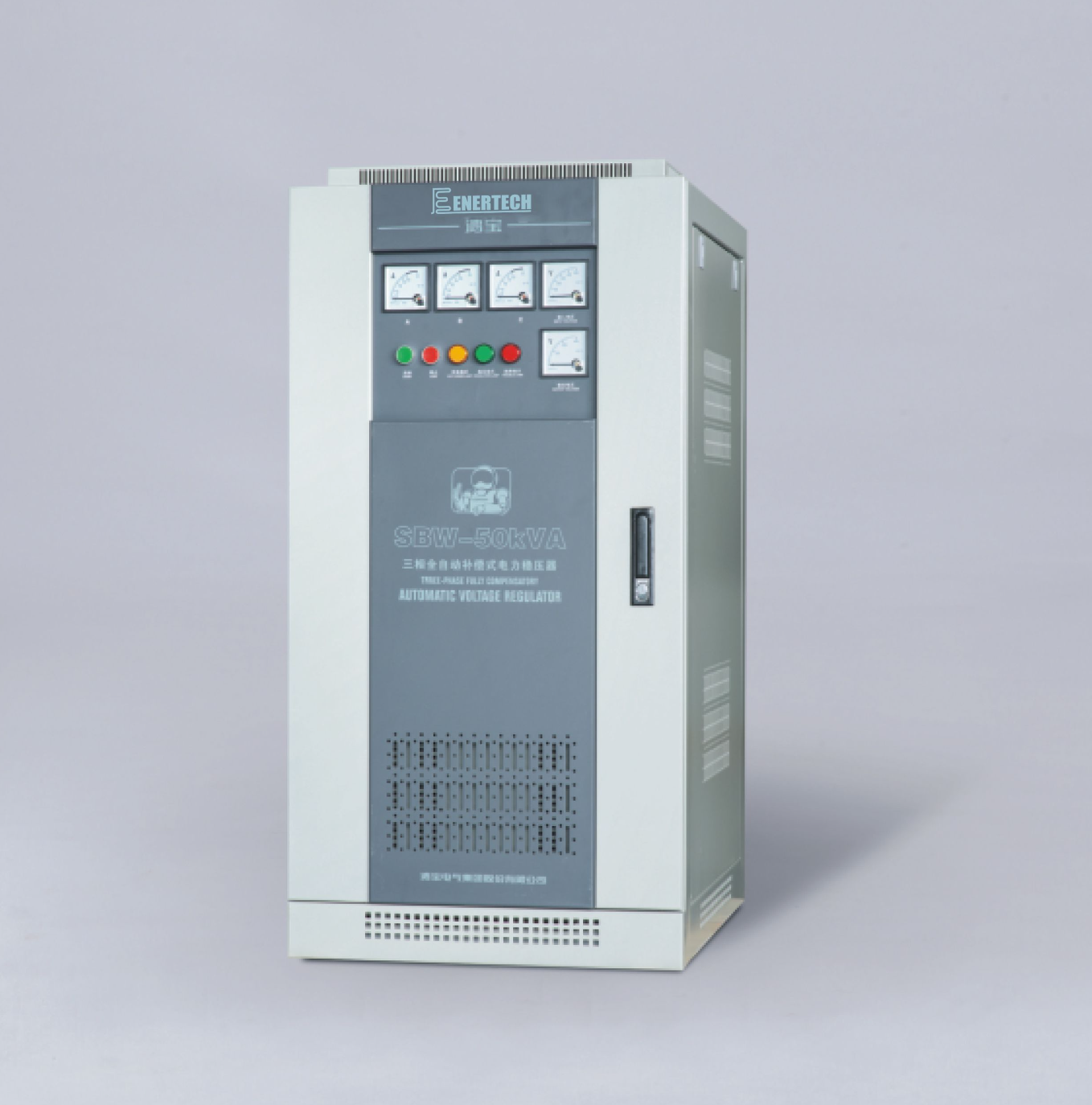

Low Voltage Stabilizer

The DBW/SBW series low voltage stabilizers provide advanced, fully automatic compensation for voltage fluctuations in single-phase and three-phase AC networks. Engineered with high capacity, excellent efficiency, low waveform distortion, and rapid response time (<1.5s), they deliver stable voltage output even under varying load conditions. Built with protective features against over-voltage, under-voltage, over-current, and phase failure, they ensure reliable performance for sensitive equipment.

Suitable for a wide range of applications including industrial machinery, medical equipment, textile plants, elevators, HVAC systems, data centers, and lighting systems, the DBW/SBW series can operate continuously under demanding conditions.

Key Advantages:

High voltage stabilization accuracy: ±2–5% (adjustable)
Efficiency ≥95% (for units above 50 kVA)
Automatic or manual start options
Compact design for easy installation and maintenance
Strong overload capacity (up to 2× rated current)
Long-term unattended operation

Performance Parameters:

Model	Capacity (kVA)	Output Max Current (A)	Size (mm) (D×W×H)	Cabinet Qty	Weight (kg)
DBW-10	10	45	500×550×1320	One	270
DBW-15	15	68	500×650×1320	One	275
DBW-20	20	91	500×650×1320	One	283
DBW-25	25	114	500×650×1320	One	300
DBW-30	30	136	500×650×1320	One	310
DBW-40	40	182	620×700×1500	One	330
DBW-50	50	227	620×800×1500	One	360
DBW-60	60	273	680×920×1620	One	380
DBW-80	80	364	680×920×1620	One	436
DBW-100	100	455	680×920×1620	One	480
DBW-150	150	682	680×920×1620	One	650
DBW-180	180	818	680×920×1750	One	530
DBW-200	200	909	680×920×1750	One	550

Input Voltage	• Three-phase: 400V ±20% (optional ±30%, ±35%) • Single-phase: 230V ±20% (optional ±30%)
Output Voltage	• Three-phase: 400V • Single-phase: 230V
Stabilization Accuracy:	±2–5% (adjustable)
Efficiency	95% (above 50 kVA)
Response Time	1.5 s
Waveform Distortion	1%
Protection	Over-voltage, under-voltage, over-current, overload, and phase failure protection
Operating Environment	-15°C to +40°C, ≤1000 m altitude, ≤90% RH
