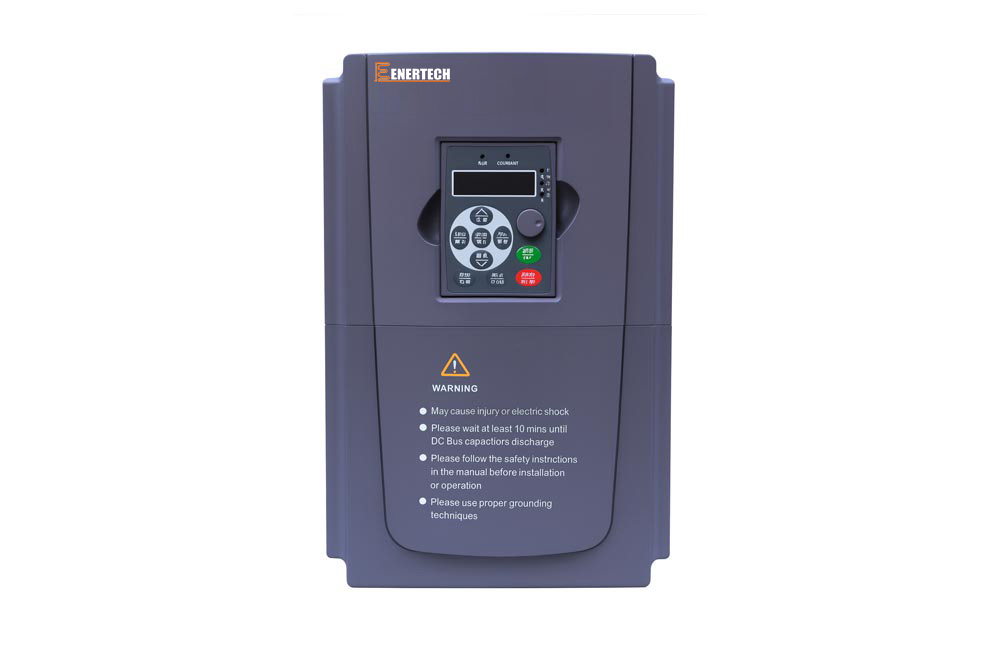

High Torque Permanent Magnet Synchronous Inverter

Unleashing Maximum Torque Efficiency for Synchronous Motors

With the development of advanced permanent magnet materials, the EB920 Series has become a preferred choice for high-efficiency synchronous motor control. Designed for applications demanding precise speed regulation and high torque, EB920 inverters deliver greater efficiency, reduced power consumption, and a smaller footprint compared to traditional asynchronous systems.

It features a carrier frequency range of 0.8–8 kHz, advanced SVC FVC V/F control, startup torque of 150%, and multiple torque boost options. With programmable multi-speed running (up to 16 speeds), customized V/F curves, and precise ramp control, the EB920 ensures optimal performance across diverse load conditions. The unit’s sealed design ensures reliable performance even in challenging industrial environments.

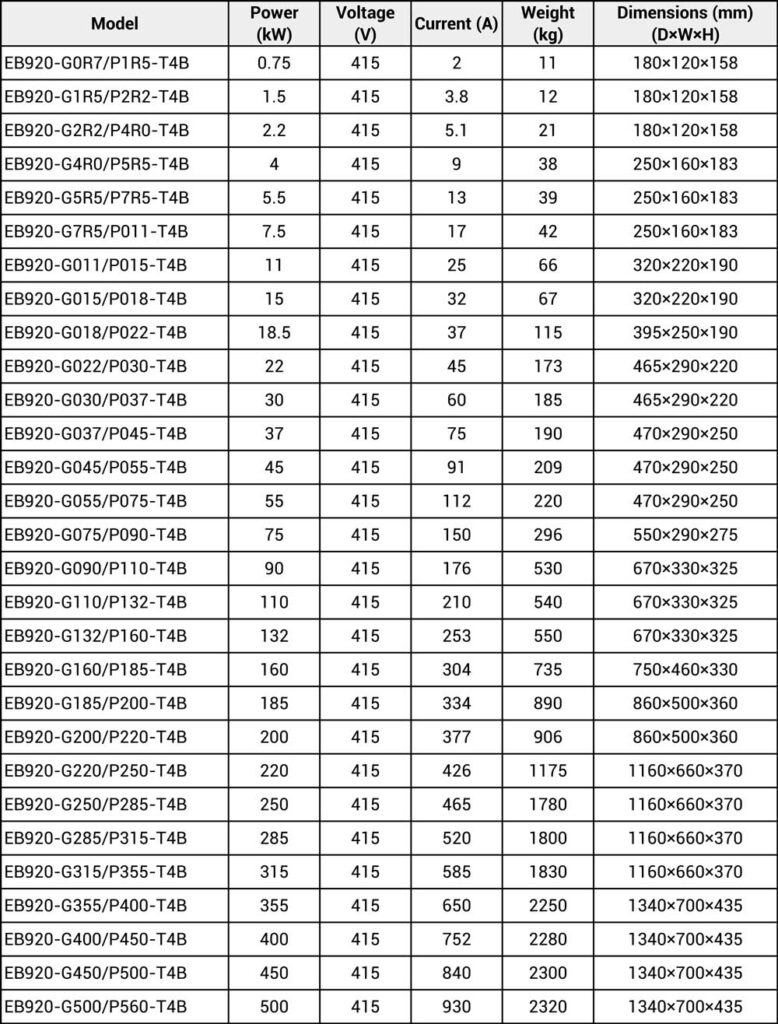

EB920 Model Variants – Dimensions & Weight
