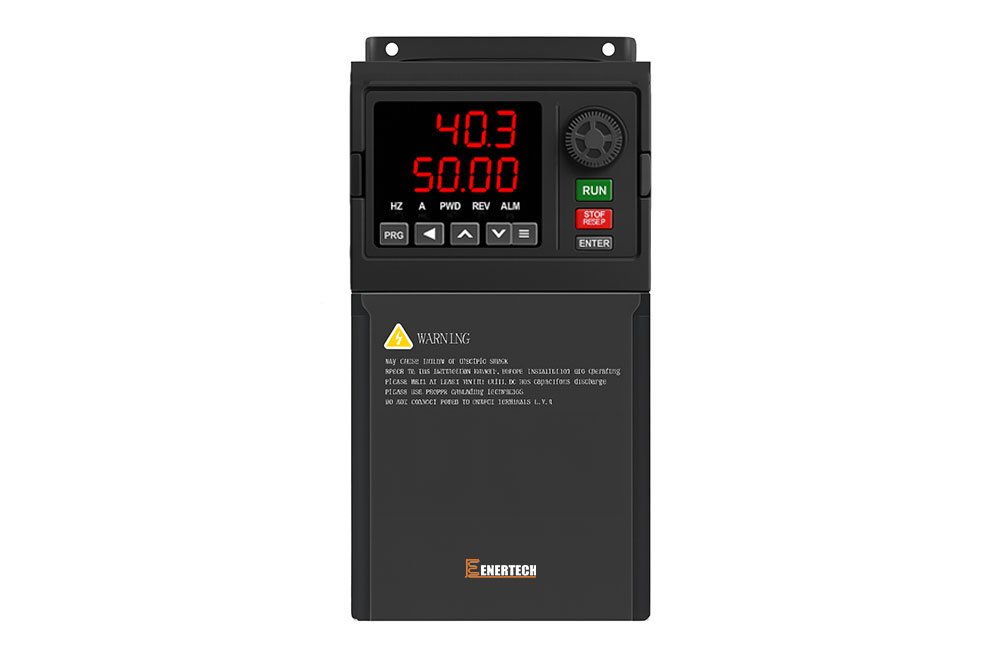

FlexiPower EB800 Series VFD

The EB800 Multi-Functional Inverter is designed for a wide range of industrial applications, offering robust motor control with enhanced performance features. Supporting SPWS mode, multi-pump control, and advanced V/F curves, it provides superior adaptability for diverse load types. The EB800 delivers high overload capacity, torque boost, precise speed stability, and multiple ramp modes for smooth acceleration and deceleration. Built-in PLC functions and multi-speed operation support complex control needs, while its auto voltage regulation maintains stable output under varying supply conditions.

The inverter supports advanced DC braking and JOG control, making it ideal for heavy-duty and precise positioning tasks. A built-in braking unit is available in select models for faster stopping times. With wide application coverage—including chemical, pharmaceutical, textile, mechanical, solar pump, and EPS systems—it is a versatile choice for modern industry. The EB800 also offers a dedicated solar pump inverter mode with MPPT algorithms, achieving up to 99% solar tracking efficiency and built-in water shortage protection.

Key Features:

Integrated macro functions such as SPWS mode, 3-pump cycle control, numerical settings.
Carrier frequency auto-adjustment (1.0–16 kHz) based on load.
High startup torque (150%) and wide speed range (1:50).
Stable speed accuracy (±1%).
High overload capacity:
- G type: 110%–150% 1 min, 200% 4s
- P type: 105%–120% 1 min, 150% 1s
Torque boost: fixed or customized (0.1%–30%).
Multiple V/F control curves: straight line, multi-point, square.
Dual acceleration/deceleration ramps (0.00–300.0s).
DC braking (0.0–36.0s, 0.0%–100% adjustable).
Built-in PLC and multi-speed operation (up to 16 speeds).
Built-in PID control and AVR for constant voltage output.
Comprehensive fault protection (over-current, over-voltage, under-voltage, over-temperature).

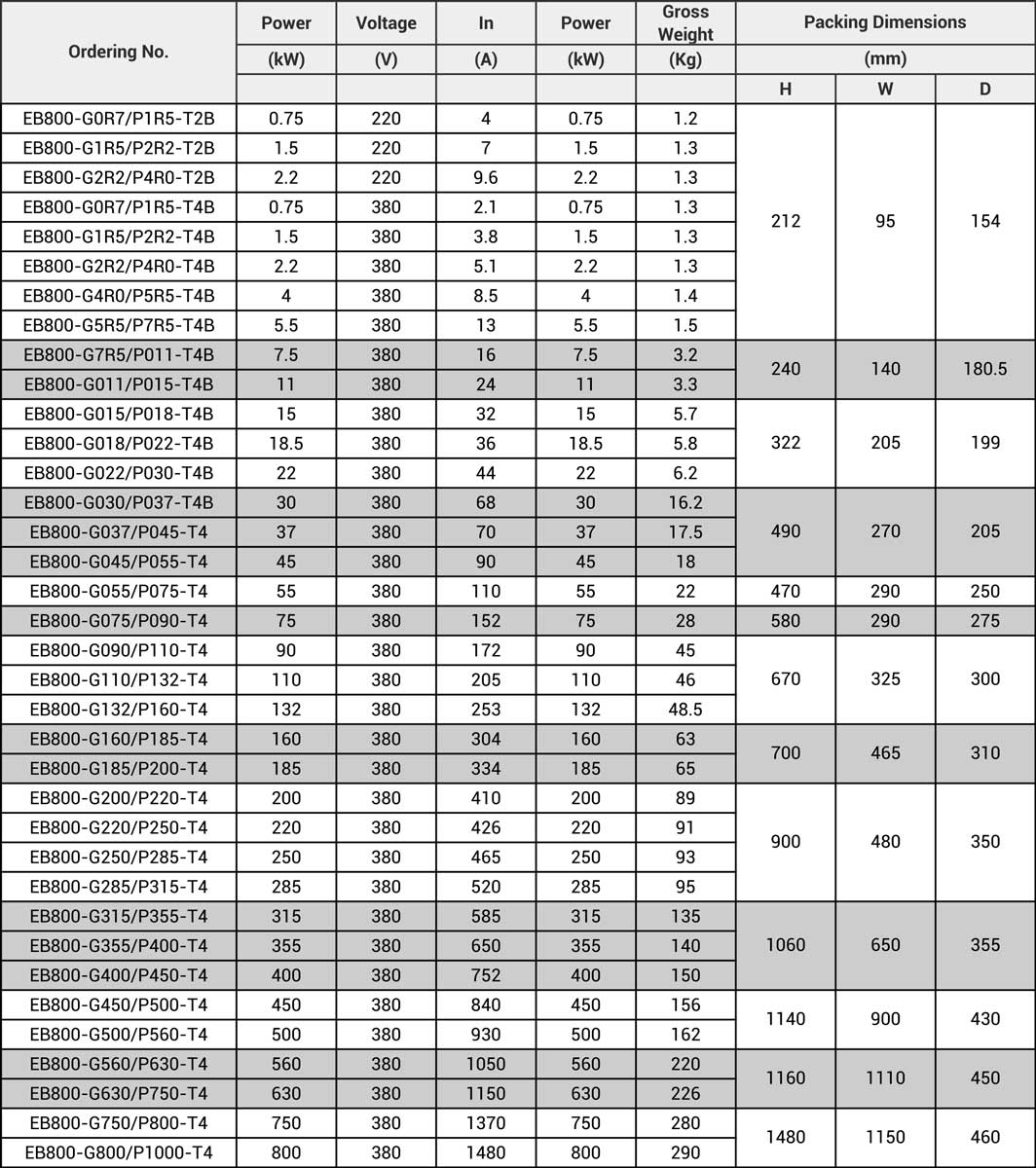

Technical Specifications

Application Range

Chemical industry
Oil collection and mining
Fluid machinery: fan, water pump, blower, music fountain
Paper making and chemical industry
Pharmaceutical and textile industry
Public mechanical equipment: CNC machine tools, etc.
Solar pump & EPS systems

Carrier Frequency	0.8–8 kHz (automatically adjusted based on load)
Input Frequency Resolution	Digital 0.01 Hz, Analog max 0.025%
Control Modes	SVC, FVC, V/F control
Startup Torque	150%
Overload Capacity	C type: 60s at 150% rated current P type: 60s at 130% rated current
Torque Boost	Fixed or customized boost 0.1%–30.0%
V/F Curve	Straight line, multi-point, or square V/F
Ramp Modes	Straight line, S-curve; ramp time range 0.00–300.0 s
JOG Control	0.00 Hz to maximum frequency; accel/decel time 0.00–6500.0 s
Multi-Speed Running	Up to 16 speeds via PLC or DI terminal combination
Dimensions & Model Plate	Same as A9100 series
Applications	High-torque synchronous motor drives, precision manufacturing, energy-efficient industrial systems
